Lecture 4 Notes

Welcome!

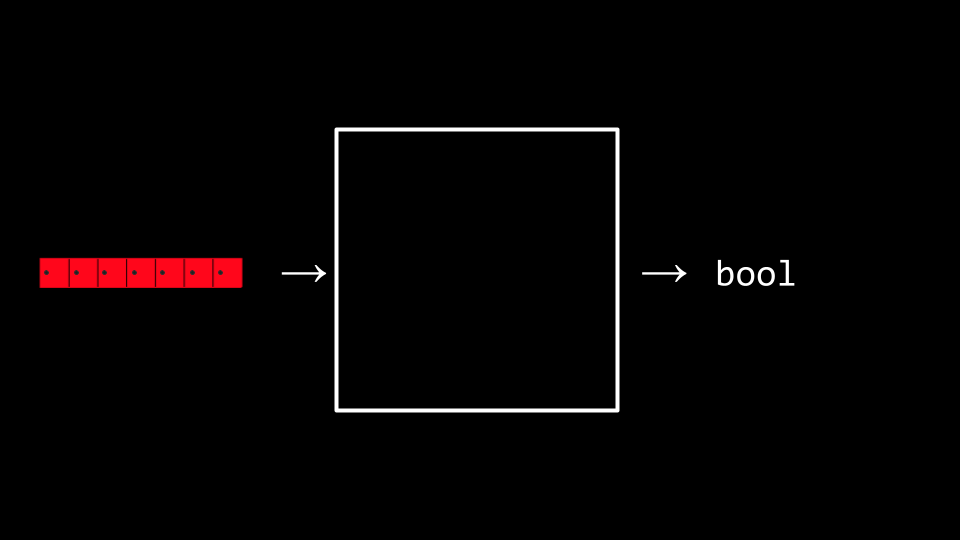

  • In week zero, we introduced the idea of an algorithm: a black box that may take an input and create an output.

  • This week, we are going to expand upon our understanding of algorithms through pseudocode and into code itself.

  • Also, we are going to consider the efficiency of these algorithms. Indeed, we are going to be building upon our understanding of how to use some of the concepts we discussed last week in building algorithms.

  • Recall back to earlier in the course when we introduced the following graph:

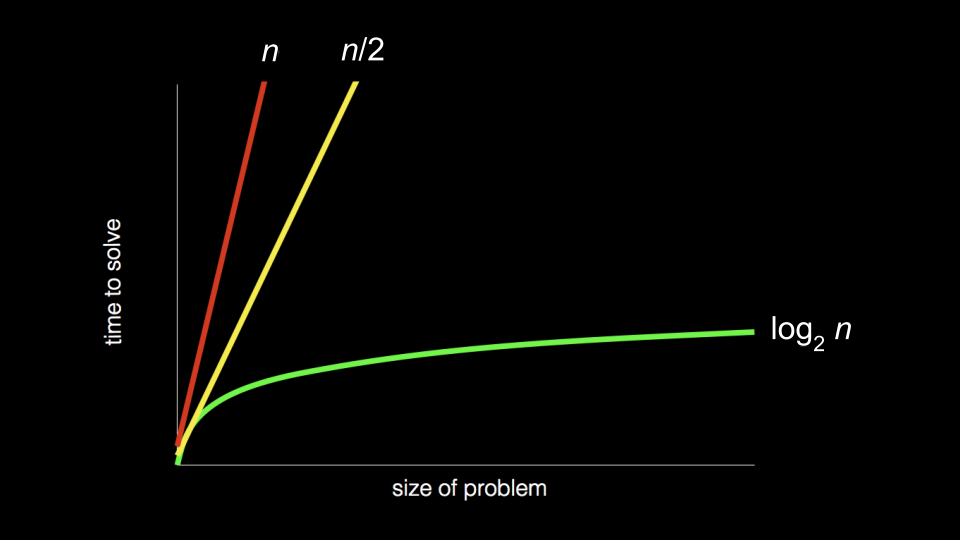

    chart with: β€œsize of problem” as x-axis; β€œtime to solve” as y-axis; red, steep straight line from origin to top of graph close to yellow, less-steep straight line from origin to top of graph, both labeled β€œn”; green, curved line that gets less and less steep from origin to right of graph, labeled β€œlog n”

  • As we step into this week, you should consider how the way an algorithm works with a problem may determine the time it takes to solve a problem! Algorithms can be designed to be more and more efficient to a limit.

  • Today, we will focus on the design of algorithms and how to measure their efficiency.

Running Time

  • You can consider how much time it takes an algorithm to solve a problem.

  • running time involves an analysis using big O notation. Take a look at the following graph:

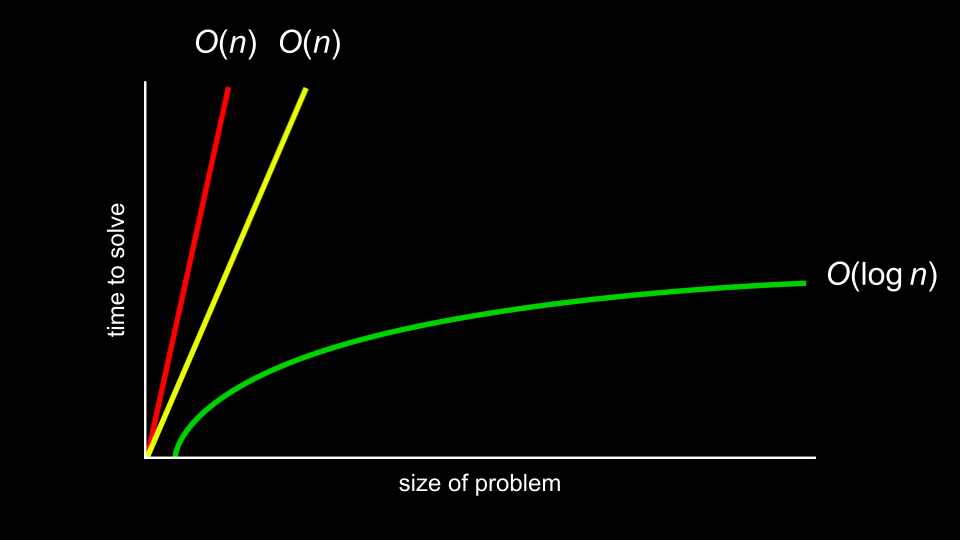

    chart with: β€œsize of problem” as x-axis; β€œtime to solve” as y-axis; red, steep straight line from origin to top of graph close to yellow, less-steep straight line from origin to top of graph, both labeled β€œO(n)”; green, curved line that gets less and less steep from origin to right of graph, labeled β€œO(log n”

  • Rather than being ultra-specific about the mathematical efficiency of an algorithm, computer scientists discuss efficiency in terms of the order of various running times.

  • In the above graph, the first algorithm is (O(n)) or in the order of n. The second is in (O(n)) as well. The third is in (O(n)).

  • It’s the shape of the curve that shows the efficiency of an algorithm. Some common running times we may see are:

    • (O(n^2))
    • (O(n n))
    • (O(n))
    • (O(n))
    • (O(1))

  • Of the running times above, (O(n^2)) is considered the slowest running time. (O(1)) is the fastest.

  • Linear search was of order (O(n)) because it could take n steps in the worst-case to run.

  • Binary search was of order (O(n)) because it would take fewer and fewer steps to run, even in the worst-case.

  • Programmers are interested in both the worst-case, or upper bound, and the best-case, or lower bound.

  • The () symbol is used to denote the best-case of an algorithm, such as ((n)).

  • The () symbol is used to denote where the upper bound and lower bound are the same: Where the best-case and the worst-case running times are the same.

  • Asymptotic notation is the measure of how well algorithms perform as the input gets larger and larger.

  • As you continue to develop your knowledge in computer science, you will explore these topics in more detail in future courses.

search.c

  • You can implement linear search by typing code search.c in your terminal window and by writing code as follows:

    // Implements linear search for integers

#include <cs50.h>
#include <stdio.h>

int main(void)
{
    // An array of integers
    int numbers[] = {20, 500, 10, 5, 100, 1, 50};

    // Search for number
    int n = get_int("Number: ");
    for (int i = 0; i < 7; i++)
    {
        if (numbers[i] == n)
        {
            printf("Found\n");
            return 0;
        }
    }
    printf("Not found\n");
    return 1;
}

    Notice that the line beginning with int numbers[] allows us to define the values of each element of the array as we create it. Then, in the for loop, we have an implementation of linear search. return 0 is used to indicate success and exit the program. return 1 is used to exit the program with an error (failure).

  • We have now implemented linear search ourselves in C!

  • What if we wanted to search for a string within an array? Modify your code as follows:

    // Implements linear search for strings

#include <cs50.h>
#include <stdio.h>
#include <string.h>

int main(void)
{
    // An array of strings
    string strings[] = {"battleship", "boot", "cannon", "iron", "thimble", "top hat"};

    // Search for string
    string s = get_string("String: ");
    for (int i = 0; i < 6; i++)
    {
        if (strcmp(strings[i], s) == 0)
        {
            printf("Found\n");
            return 0;
        }
    }
    printf("Not found\n");
    return 1;
}

    Notice that we cannot utilize == as in our previous iteration of this program. Instead, we use strcmp, which comes from the string.h library. strcmp will return 0 if the strings are the same. Also, notice that the string length of 6 is hard-coded, which is not good programming practice.

  • Indeed, running this code allows us to iterate over this array of strings to see if a certain string is within it. However, if you see a segmentation fault, where a part of memory was touched by your program that it should not have access to, do make sure you have i < 6 noted above instead of i < 7.

  • You can learn more about strcmp at the CS50 Manual Pages.

phonebook.c

  • We can combine these ideas of both numbers and strings into a single program. Type code phonebook.c into your terminal window and write code as follows:

    // Implements a phone book without structs

#include <cs50.h>
#include <stdio.h>
#include <string.h>

int main(void)
{
    // Arrays of strings
    string names[] = {"Yuliia", "David", "John"};
    string numbers[] = {"+1-617-495-1000", "+1-617-495-1000", "+1-949-468-2750"};

    // Search for name
    string name = get_string("Name: ");
    for (int i = 0; i < 3; i++)
    {
        if (strcmp(names[i], name) == 0)
        {
            printf("Found %s\n", numbers[i]);
            return 0;
        }
    }
    printf("Not found\n");
    return 1;
}

    Notice that Yuliia’s number begins with +1-617, David’s phone number starts with +1-617, and John’s number starts with +1-949. Therefore, names[0] is Yuliia, and numbers[0] is Yuliia’s number. This code will allow us to search the phonebook for a person’s specific number.

  • While this code works, there are numerous inefficiencies. Indeed, there is a chance that names and phone numbers may not correspond to one another. Wouldn’t it be nice if we could create our own data type where we could associate a person with the phone number?

Structs

  • It turns out that C allows us to create our own data types via a struct.

  • Would it not be useful to create our own data type called a person that has inside of it a name and number? Consider the following:

    typedef struct
{
    string name;
    string number;
} person;

    Notice how this represents our own datatype called a person that has a string called name and another string called number.

  • We can improve our prior code by modifying our phonebook program as follows:

    // Implements a phone book with structs

#include <cs50.h>
#include <stdio.h>
#include <string.h>

typedef struct
{
    string name;
    string number;
} person;

int main(void)
{
    person people[3];

    people[0].name = "Yuliia";
    people[0].number = "+1-617-495-1000";

    people[1].name = "David";
    people[1].number = "+1-617-495-1000";

    people[2].name = "John";
    people[2].number = "+1-949-468-2750";

    // Search for name
    string name = get_string("Name: ");
    for (int i = 0; i < 3; i++)
    {
        if (strcmp(people[i].name, name) == 0)
        {
            printf("Found %s\n", people[i].number);
            return 0;
        }
    }
    printf("Not found\n");
    return 1;
}

    Notice that the code begins with typedef struct where a new datatype called person is defined. Inside a person is a string called name and a string called number. In the main function, begin by creating an array called people that is of type person that is a size of 3. Then, we update the names and phone numbers of the two people in our people array. Most importantly, notice how the dot notation, such as people[0].name, allows us to access the person at the 0th location and assign that individual a name.

Sorting

  • Sorting is the act of taking an unsorted list of values and transforming this list into a sorted one.

  • When a list is sorted, searching that list is far less taxing on the computer. Recall that we can use binary search on a sorted list but not on an unsorted one.

  • It turns out that there are many different types of sorting algorithms.

  • Selection sort is one such sorting algorithm.

  • We can represent an array as follows:

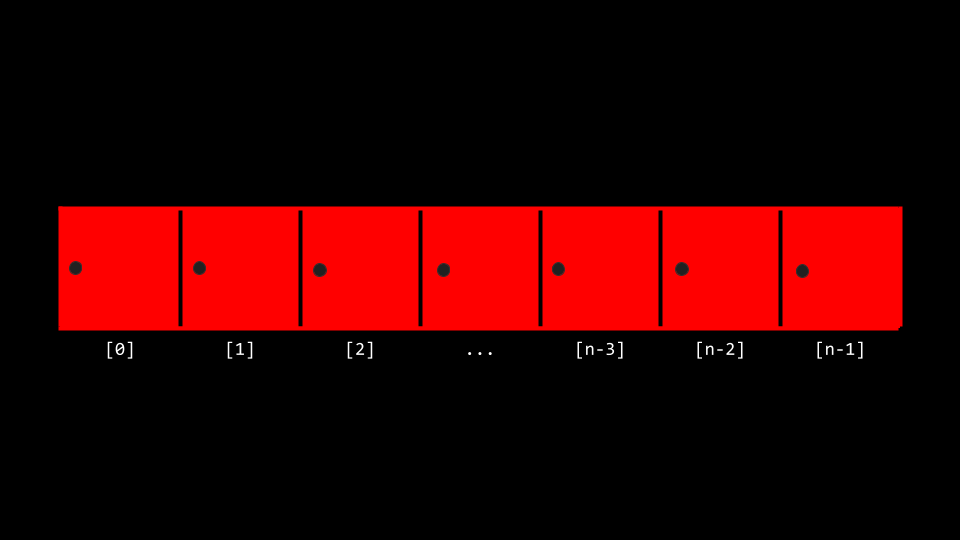

    Seven red lockers side by side with the last labeled as n-1

  • The algorithm for selection sort in pseudocode is:

    For i from 0 to n–1
    Find smallest number between numbers[i] and numbers[n-1]
    Swap smallest number with numbers[i]

  • Summarizing those steps, the first time iterating through the list took n - 1 steps. The second time, it took n - 2 steps. Carrying this logic forward, the steps required could be represented as follows:

    (n - 1) + (n - 2) + (n - 3) + ... + 1

  • This could be simplified to n(n-1)/2 or, more simply, (O(n^2)). In the worst-case or upper-bound, selection sort is in the order of (O(n^2)). In the best-case, or lower-bound, selection sort is in the order of ((n^2)).

Bubble Sort

  • Bubble sort is another sorting algorithm that works by repeatedly swapping elements to β€œbubble” larger elements to the end.

  • The pseudocode for bubble sort is:

    Repeat n-1 times
    For i from 0 to n–2
        If numbers[i] and numbers[i+1] out of order
            Swap them
    If no swaps
        Quit

  • As we further sort the array, we know more and more of it becomes sorted, so we only need to look at the pairs of numbers that haven’t been sorted yet.

  • Bubble sort can be analyzed as follows:

      (n – 1) Γ— (n – 1)
  n2 – 1n – 1n + 1
  n2 – 2n + 1

    or, more simply (O(n^2)).

  • In the worst-case, or upper-bound, bubble sort is in the order of (O(n^2)). In the best-case, or lower-bound, bubble sort is in the order of ((n)).

  • You can visualize a comparison of these algorithms.

Recursion

  • How could we improve our efficiency in our sorting?

  • Recursion is a concept within programming where a function calls itself. We saw this earlier when we saw…

    If no doors left
    Return false
If number behind middle door
    Return true
Else if number < middle door
    Search left half
Else if number > middle door
    Search right half

    Notice that we are calling search on smaller and smaller iterations of this problem.

  • Similarly, in our pseudocode for Week 0, you can see where recursion was implemented:

    1  Pick up phone book
2  Open to middle of phone book
3  Look at page
4  If person is on page
5      Call person
6  Else if person is earlier in book
7      Open to middle of left half of book
8      Go back to line 3
9  Else if person is later in book
10     Open to middle of right half of book
11     Go back to line 3
12 Else
13     Quit

  • This code could have been simplified to highlight its recursive properties as follows:

    1  Pick up phone book
2  Open to middle of phone book
3  Look at page
4  If person is on page
5      Call person
6  Else if person is earlier in book
7      Search left half of book
9  Else if person is later in book
10     Search right half of book
12 Else
13     Quit

  • Consider how in Week 1 we wanted to create a pyramid structure as follows:

      #
  ##
  ###
  ####

  • Type code iteration.c into your terminal window and write code as follows:

    // Draws a pyramid using iteration

#include <cs50.h>
#include <stdio.h>

void draw(int n);

int main(void)
{
    // Get height of pyramid
    int height = get_int("Height: ");

    // Draw pyramid
    draw(height);
}

void draw(int n)
{
    // Draw pyramid of height n
    for (int i = 0; i < n; i++)
    {
        for (int j = 0; j < i + 1; j++)
        {
            printf("#");
        }
        printf("\n");
    }
}

    Notice that this code builds the pyramid by looping.

  • To implement this using recursion, type code iteration.c into your terminal window and write code as follows:

    // Draws a pyramid using recursion

#include <cs50.h>
#include <stdio.h>

void draw(int n);

int main(void)
{
    // Get height of pyramid
    int height = get_int("Height: ");

    // Draw pyramid
    draw(height);
}

void draw(int n)
{
    // If nothing to draw
    if (n <= 0)
    {
        return;
    }

    // Draw pyramid of height n - 1
    draw(n - 1);

    // Draw one more row of width n
    for (int i = 0; i < n; i++)
    {
        printf("#");
    }
    printf("\n");
}

    Notice the base case will ensure the code does not run forever. The line if (n <= 0) terminates the recursion because the problem has been solved. Every time, draw calls itself, it calls itself by n-1. At some point, n-1 will equal 0, resulting in the draw function returning, and the program will end.

Merge Sort

  • We can now leverage recursion in our quest for a more efficient sort algorithm and implement what is called merge sort, a very efficient sort algorithm.

  • The pseudocode for merge sort is quite short:

    If only one number
    Quit
Else
    Sort left half of number
    Sort right half of number
    Merge sorted halves

  • Consider the following list of the numbers:

      6341

  • First, merge sort asks, β€œis this one number?” The answer is β€œno,” so the algorithm continues.

      6341

  • Second, merge sort will now split the numbers down the middle (or as close as it can get) and sort the left half of numbers.

      63|41

  • Third, merge sort would look at these numbers on the left and ask, β€œis this one number?” Since the answer is no, it would then split the numbers on the left down the middle.

      6|3

  • Fourth, merge sort will again ask, β€œis this one number?” The answer is yes this time! Therefore, it will quit this task and return to the last task it was running at this point:

      63|41

  • Fifth, merge sort will sort the numbers on the left.

      36|41

  • Now, we return to where we left off in the pseudocode now that the left side has been sorted. A similar process of steps 3-5 will occur with the right-hand numbers. This will result in:

      36|14

  • Both halves are now sorted. Finally, the algorithm will merge both sides. It will look at the first number on the left and the first number on the right. It will put the smaller number first, then the second smallest. The algorithm will repeat this for all numbers, resulting in:

      1346

  • Merge sort is complete, and the program quits.

  • Merge sort is a very efficient sort algorithm with a worst-case of (O(n n)). The best-case is still ((n n)) because the algorithm still must visit each place in the list. Therefore, merge sort is also ((n n)) since the best-case and worst-case are the same.

  • A final visualization was shared.

Summing Up

In this lesson, you learned about algorithmic thinking and building your own data types. Specifically, you learned…

  • Algorithms.
  • Big O notation.
  • Binary search and linear search.
  • Various sort algorithms, including bubble sort, selection sort, and merge sort.
  • Recursion.

See you next time!
